Question:

Saab 9-3 2005 Add Key&All Key Lost

Tango Failed

Can Xhorse VVDI series tools program Saab 9-3 2005 (Add Key&All Key Lost)?



Answer:

Yes, there is a successful case by Xhorse VVDI Prog & VVDI2, but it requires to remove the CIM module and program it on bench.

Here is the case.



Tools:

Xhorse VVDI2

Xhorse VVDI Prog

Xhorse VVDI Key Tool Max

Xhorse VVDI Super Chip

Xhorse VVDI Prog EEPROM Clip Adapter

CIM module

93C66 chip



Remove the CIM module inside the steering column.

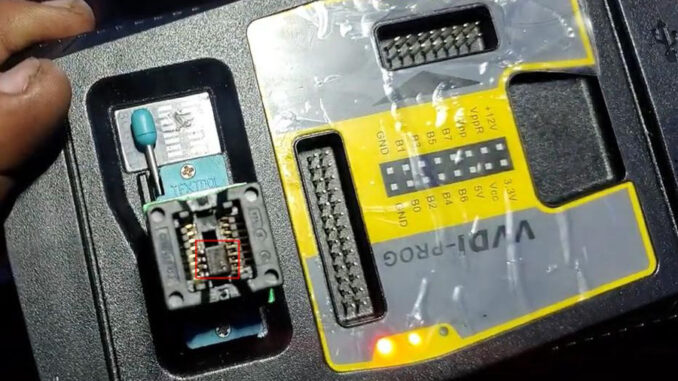

Desolder 93C66 chip and put it into the slot of VVDI Prog.

Saab 9-3 2005 Programming by Xhorse VVDI Prog & VVDI2

Saab 9-3 2005 Programming by Xhorse VVDI Prog & VVDI2

Use the USB cable to connect VVDI Prog and PC.

Open the VVDI Prog software.

Choose “EEPROM&FLASH”“MICROCHIP” and “93C/LC/AA66A(8PIN)”.

Press “Read” and “Save” to get the original EEPROM data file.



Use the USB cable to connect Xhorse VVDI2 and PC.

Open the VVDI2 software.

Press

Transponder Programmer>>Immoillizer Data Tool.

Choose “Euro”“Saab”“9-3” and “2003-93C66”.

Press “Load EEPROM dump file” to load the file we saved before.

Saab 9-3 2005 Programming by Xhorse VVDI Prog & VVDI2



Press

Key 3 Not use>>Make Dealer Key>>PCF 7936(PCF 7946)

Input the working key into the slot of VVDI2.

Press “OK” to save the new dump file.

Here we can load the new file to check the key number change.

Saab 9-3 2005 Programming by Xhorse VVDI Prog & VVDI2



Insert the VVDI super chip into the slot of VVDI Key Tool Max.

Use Xhorse VVDI Key Tool Max to reset Xhorse VVDI Super Chip.

Press

Special Function>>Set type of VVDI super chip>>Reset VVDI super chip



Insert the VVDI super chip into the slot of VVDI2.

Saab 9-3 2005 Programming by Xhorse VVDI Prog & VVDI2



Turn to VVDI2 software, press

Key 1 Used>>Make Dealer Key>>VVDI Super chip

Prepare dealer key success.

Saab 9-3 2005 Programming by Xhorse VVDI Prog & VVDI2



Turn to VVDI Prog software

Open the new Key 3 dump file.

Click “Write” to write the file back to the EEPROM.

Click “Verify” to check the information.



Solder the chip back together.

Short out the crystal beside 93C66 chip.

Saab 9-3 2005 Programming by Xhorse VVDI Prog & VVDI2



Use Xhorse VVDI Prog EEPROM Clip Adapter to connect Xhorse VVDI Prog and 93C66 chip on the circuit.

Use the VVDI Prog software to read and check the EEPROM data.

Now we have the Key 3 bin file for Add Key and the VVDI super chip as the dealer key for AKL.

Done!
