Xhorse VVDI Bee Key Tool Lite is a new device that supports to generate remote on Android phones. Besides, it also supports to generate and clone transponder,  detect remote frequency, clone IC/ID, unlock Toyota smart key, etc. Read this post to learn how to use.

Xhorse VVDI Bee Key Tool Lite User Manual Instruction

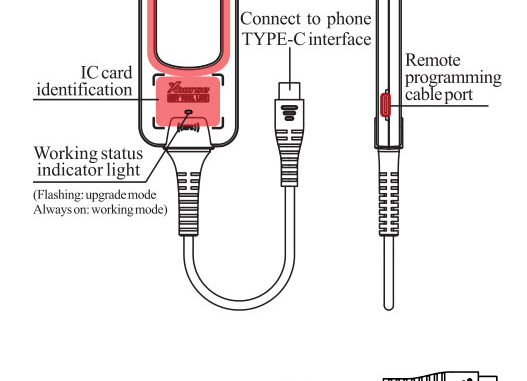

Xhorse VVDI Key Tool Lite Configuration

Key Slot Coil: 1) Remote frequency detection; 2) Chip clone collection; 3) Chip and remote reading coil(125Khz, 134KHz).

IC Card Identification

Working Status Indicator Light: Flash – upgrade mode, Always On – working mode

Connect to Phone TYPE-C Interface

Remote Programming Cable Port

Remote Programming Cable

Xhorse VVDI Bee Key Tool Lite User Manual Instruction



Xhorse VVDI Key Tool Lite Connection Method

Xhorse VVDI Bee Key Tool Lite User Manual Instruction

How to power on?

  1. Insert TYPE-C cable;
  2. Allow Xhorse app to access thethe phone via USB;
  3. Connect the device.



How to power off?

Disconnect the TYPE-C cable.



Note: If there is a prompt on the right side of the interface, open the phone settings and turn on the OTG connection switch.



Main function 1: Generate Remote & Transponder, Frequency Detection

Vehicle Remote: supportXhorse XK wire remote, XN wireless remote, XE wireless remote and Xhorse smart remote generation.



Generate Transponder: support VVDI XT27 Super Remote generation.



Frequency Detection: supportcommon car key frequency detection.

Xhorse VVDI Bee Key Tool Lite User Manual Instruction



Main Function 2: Transponder Clone

As shown in the pic, move the Key Tool Lite close to the ignition switch, and turn the ignition key on and off repeatedly.

(For push start system, use the Key Tool Lite close to the emergency switch area, then press the start button repeatedly).

Xhorse VVDI Bee Key Tool Lite User Manual Instruction



Transponder Clone Interface Process

Take out original key, suggest put VVDI super chip or wireless remote to write data.

Xhorse VVDI Bee Key Tool Lite User Manual Instruction



Main Function 3: IC/ID Clone

  1. Place the IC/ID card in the Key Tool Lite coil, click “IC/ID identification”.
  2. Click “Clone” to start cloning.

Xhorse VVDI Bee Key Tool Lite User Manual Instruction



Special Functions

  1. Ignition switch coil signal detection.
  2. Unlock Toyota smart key.
  3. 8E remote upgrade and unlock.
  4. Honda cycle key renew.
  5. Set type of VVDI super chips.

* ID48 96bit clone is not supported currently.
