How to Test Xhorse Dolphin XP-005 Battery Storage?

Test Xhorse Dolphin XP-005 Battery Storage

Once the Xhorse Dolphin XP-005 key cutting machine unable to start up, users may have to test if there was a problem with battery. Follow the steps below to learn how to check by yourself.



NOTE: Please charge battery for one or more hours before disassembly.



How to test Dolphin XP-005 battery storage?

  1. Remove base armrest by loosening the screws on both sides of base.

Test Xhorse Dolphin XP-005 Battery Storage



  1. Lay down Dolphin XP005 machine as image, loosen the screws marked to remove base plate.

Test Xhorse Dolphin XP-005 Battery Storage

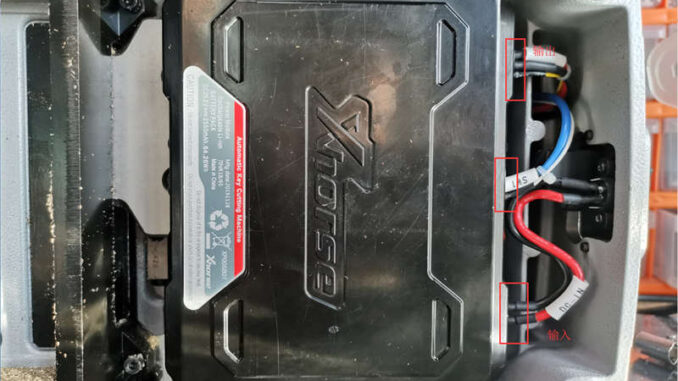

  1. Loosen 4 screws and unplug 3 connectors. (Remember to record its original positions for re-installation.)

Test Xhorse Dolphin XP-005 Battery Storage



  1. Take out the battery, short-circuit the 2 pins inside Start Switch. Use a multimeter to measure the 2 pins of output terminal.



If there’s not 24V voltage output, which means the battery does not store electricity. You should replace the battery.

Test Xhorse Dolphin XP-005 Battery Storage



Technical support by: www.xhorsestore.co.uk Hope it’s helpful.
