How to use Xhorse VVDI Key Tool Max to program Toyota Corolla Altis Esport 2015  all keys lost without disassembly? Following the operation below to learn how to do.



Tools required:

VVDI Key Tool Max

Mini OBD Tool

Toyota 8A Adapter & Cables

VVDI Super Chip XT27



Connection:

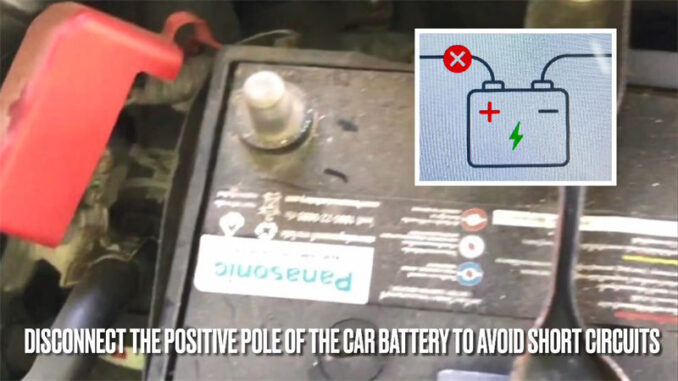

  1. Disconnect the positive pole of the car battery to avoid short circuits.
  2. Connect J3 lock plug into relay IG2 position.
  3. Remove relay IG2 in picture.
  4. Connect J3 lock plug into replay IG2.
  5. Bring J3 cable into the car.
  6. Connect J5 plug to switch lock plug.

Xhorse Key Tool Max Program Toyota Corolla 2015 AKL No Disassembly

Xhorse Key Tool Max Program Toyota Corolla 2015 AKL No Disassembly

Xhorse Key Tool Max Program Toyota Corolla 2015 AKL No Disassembly

Xhorse Key Tool Max Program Toyota Corolla 2015 AKL No Disassembly

Xhorse Key Tool Max Program Toyota Corolla 2015 AKL No Disassembly



  1. Connect J4 lock plug into OBD2 port.
  2. Connect J6 lock plug with 8A adapter & Mini OBD tool.
  3. Connect Red 8A cable to positive of battery.



Note: DO NOT plug main cable to battery!



All LED light up means connection is successful.

Xhorse Key Tool Max Program Toyota Corolla 2015 AKL No Disassembly

Xhorse Key Tool Max Program Toyota Corolla 2015 AKL No Disassembly

Xhorse Key Tool Max Program Toyota Corolla 2015 AKL No Disassembly

Xhorse Key Tool Max Program Toyota Corolla 2015 AKL No Disassembly

Xhorse Key Tool Max Program Toyota Corolla 2015 AKL No Disassembly



Procedure:

Have been identified car model, press “Start execution”.



Please make sure Internet is good.

This function has limit times each time.



Don’t insert the key, keep ignition off.

The dashboard will be ON and OFF, it is normal status.



Connecting to immobox…



Success!



Put a Super Chip into Key Tool Max.

Prepare to make master key which can start car directly.



Choose mater key number:1

Waiting for processing…

Mater key generate successfully. This key ca start car directly.

Xhorse Key Tool Max Program Toyota Corolla 2015 AKL No Disassembly

Xhorse Key Tool Max Program Toyota Corolla 2015 AKL No Disassembly

Xhorse Key Tool Max Program Toyota Corolla 2015 AKL No Disassembly



Remove 8A cable and connector J3, plug main positive cable and plug replay IG2.



Put writing chip XT27 into a remote key shell.

It does start the car.

Done!

Xhorse Key Tool Max Program Toyota Corolla 2015 AKL No Disassembly

Xhorse Key Tool Max Program Toyota Corolla 2015 AKL No Disassembly



Use a Toyota 8A adapter to program all key lost no disassembly has saved much time to make it easier.
