Xhorse VVDI Key Tool Plus Key Programming for Toyota Camry 2015

Xhorse VVDI Key Tool Plus Key Programming for Toyota Camry2015

This is a demo about how to add a smart key for Toyota Camry 2015 by Xhorse VVDI Key Tool Plus with Xhorse smart key PCB XM-TOY00GL.



Part 1.Check original key’s remote and transponder

Press “Transponder Clone”.

Insert the original key into the coil and press “Generate”.

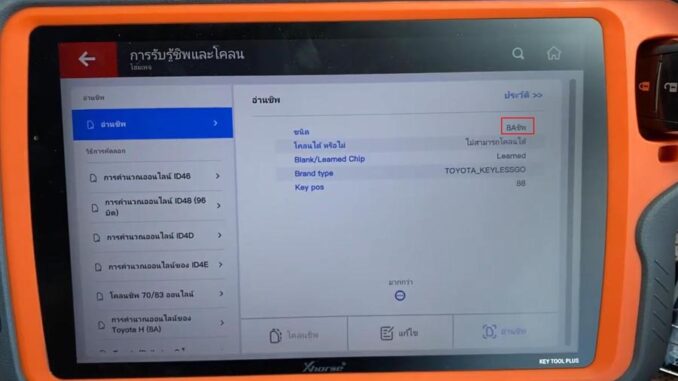

Here we can see the original key is with 8A chip.

Xhorse VVDI Key Tool Plus Key Programming for Toyota Camry2015

Back to Homepage

Press “Remote Clone”.

Press any key button near the sensing area to check remote frequency.

Xhorse VVDI Key Tool Plus Key Programming for Toyota Camry2015

Part 2.Remote clone

Back to Homepage, press

Remote Clone>>TOYOTA>>[All remotes]>>0020 312.1/314.35

Put XM-TOY00GL PCB into the coil with chip side down and press “Generate”.

Xhorse VVDI Key Tool Plus Key Programming for Toyota Camry2015

Xhorse VVDI Key Tool Plus Key Programming for Toyota Camry2015

Now the XM-TOY00GL PCB LED will flash.

Xhorse VVDI Key Tool Plus Key Programming for Toyota Camry2015

Burn success.

Part 3.Immo programming

Put XM-TOY00GL into Toyota smart shell.

Back to Homepage, press

IMMO Programming>>Toyota>>Select from model>>Camry>>2010->>Smart key system(8A/4D+ CAN)>>Start Programming

Press “Read the number of keys”

Switch the ignition on.

Here shows “the number of registered key:1”.

Back to main menu of immo programming.

Press “add a key” and switch ignition on.

Here is the number of keys to be programmed.

Xhorse VVDI Key Tool Plus Key Programming for Toyota Camry2015

Press “OK” and follow the prompt.

Xhorse VVDI Key Tool Plus Key Programming for Toyota Camry2015

Xhorse VVDI Key Tool Plus Key Programming for Toyota Camry2015

Wait and do the next prompt.

Xhorse VVDI Key Tool Plus Key Programming for Toyota Camry2015

Key registration succeeded!

Xhorse VVDI Key Tool Plus Key Programming for Toyota Camry2015

Press “OK” and you’ll see current key numbers.

Xhorse VVDI Key Tool Plus Key Programming for Toyota Camry2015

Check if the key works normally.

This is how we generate a XM-TOY00GL PCB to add a smart key for Toyota Camry 2015 by Xhorse VVDI Key Tool Plus.

Complete!Nice and simple.
