How Audi BCM2 Solder-free Adapter Works with VVDI2 + VVDI Prog?

Audi BCM2 Solder-free Adapter Works with VVDI2 + VVDI Prog

This is a guide to show how to use Audi BCM2 Solder-free Adapter working with Xhorse VVDI2 + VVDI Prog.



Operating Steps

Note: Make sure VVDI2 & VVDI Prog are the latest version(software, firmware).



  • Connection

Open VVDI Prog software, follow the selections:

Type: 4-IMMOBILIZER

Brand: AUDI

Chip: LOCK_BCM2_1(ADAPTER)

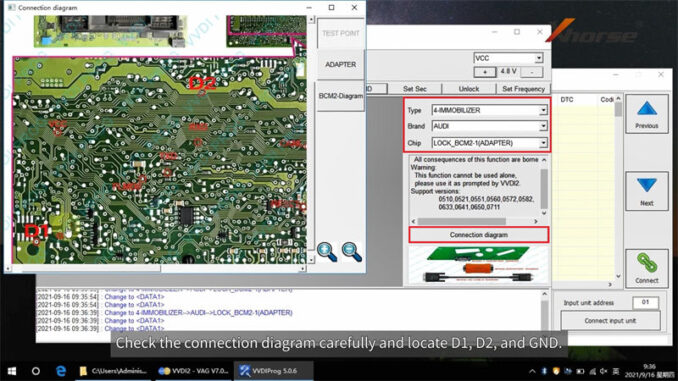

Click “Connection diagram” to check the position of D1, D2 and GND.

Audi BCM2 Solder-free Adapter Works with VVDI2 + VVDI Prog



  1. Install the positioning pin.
  2. Locate the positions of D1, D2, GND.
  3. Clip Solder-free Adapterto the BCM module in contact with 3 spots, and fix it.
  4. Connect BCM & Adapterto VVDI Prog (12V power supply).

Audi BCM2 Solder-free Adapter Works with VVDI2 + VVDI Prog

Audi BCM2 Solder-free Adapter Works with VVDI2 + VVDI Prog

Audi BCM2 Solder-free Adapter Works with VVDI2 + VVDI Prog

Audi BCM2 Solder-free Adapter Works with VVDI2 + VVDI Prog



  • Load BCM2 Data

Open Xhorse VVDI2 software, follow the path to read instructions carefully:

Key learn >> Fifth immobilizer system – locked BCM2 version >> Details instructions

Audi BCM2 Solder-free Adapter Works with VVDI2 + VVDI Prog

Audi BCM2 Solder-free Adapter Works with VVDI2 + VVDI Prog

Go back to VVDI Prog, select DATA1 to read & save.

Click “Step1: Show BCM2 information” in VVDI2 to load DATA1 file



Go back to VVDI Prog to read & save DATA2 file.

Click “Step2: Get BCM2 immodata” in VVDI2 to load DATA2 file.

You’ll be asked to save immo data and service mode data during the step.

Audi BCM2 Solder-free Adapter Works with VVDI2 + VVDI Prog

Audi BCM2 Solder-free Adapter Works with VVDI2 + VVDI Prog

Audi BCM2 Solder-free Adapter Works with VVDI2 + VVDI Prog

Service mode file must be written back to BCM2 module via VVDI Prog.

Open service mode file in VVDI Prog to write.



Please DO NOT move adapter or module during the process.



Writing success.

Now you can restore the BCM back to car, and ready to make a new Audi 754J Smart Key.
