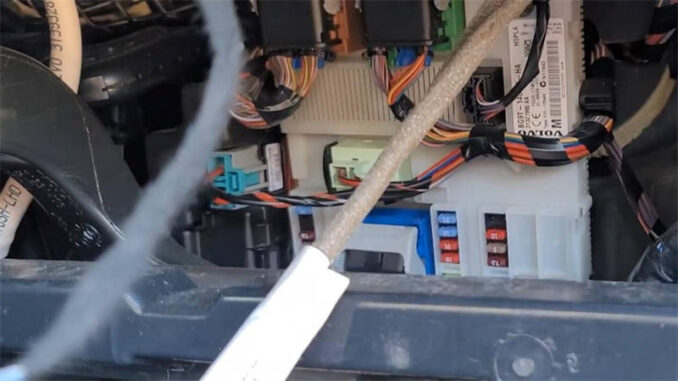

Xhorse VVDI Key Tool Plus Pad is able to program a new smart key for 2015 Volvo XC60 successfully. Required to take out CEM & KVM module from vehicle and work with VOLVO Solder-Free Adapters.



VOLVO Solder-Free Adapters Package List:
1pc x XDNP27 for VOLVO-KVM-VER1.0
1pc x XDNP28 for VOLVO-CEM 1
1pc x XDNP29 for VOLVO-CEM 2



XDNP27 is for KVM, XDNP28 is for CEM 1 and XDN29 is for CEM 2. With these adapters, no need soldering wires any more. Only to insert on module for connection.

Xhorse VVDI Key Tool Plus Add 2015 Volvo XC60 Key No Soldering

Xhorse VVDI Key Tool Plus Add 2015 Volvo XC60 Key No Soldering

Xhorse VVDI Key Tool Plus Add 2015 Volvo XC60 Key No Soldering

Xhorse VVDI Key Tool Plus Add 2015 Volvo XC60 Key No Soldering

Xhorse VVDI Key Tool Plus Add 2015 Volvo XC60 Key No Soldering

Read CEM & KVM data

Go to select CEM model in “Prog >> IMMO >> Volvo” to read & save CEM data.

Go to select KVM model in “Prog >> IMMO >> Volvo” to read & save KVM data.

Necessary wiring diagram can be found here.



Program Key

Immo programming >> Volvo >> XC60 >> 2009-2016 >> Smart key system >> Add smart keys



Confirm CEM & KVM data, then load data file in turns.

Operate according to commands:

Press start button once.

Confirm VIN.

Confirm key numbers.

Insert new key into VVDI Key Tool Plus key slot, take other keys out of the car 1 meter.

Remove key from key slot, press UNLOCK button once.

(if the vehicle does not response, try again.)

Completed!

Xhorse VVDI Key Tool Plus Add 2015 Volvo XC60 Key No Soldering

Xhorse VVDI Key Tool Plus Add 2015 Volvo XC60 Key No Soldering

Test Key

Re-install CEM & KVM module to vehicle.

VVDI Key Tool Plus also supports to check the module status.

Path: Immo programming >> Volvo >> XC60 >> 2009-2016 >> Smart key system >> Module recognition



Central electronic module(CEM) installed.

Intelligent control module(KVM) installed.



Alright, now can test the keys, all can work well.

All done!

Xhorse VVDI Key Tool Plus Add 2015 Volvo XC60 Key No Soldering

Xhorse VVDI Key Tool Plus Add 2015 Volvo XC60 Key No Soldering

BTW, Xhorse also supply solder free adapters for other models such as BMW , Porsche, Land Rover, Honda, Kia, Hyundai. Buy with VVDI Key Tool Plus Pad Full Set should be a good deal for locksmiths.
