Xhorse VVDI Key Tool Max/ VVDI Key Tool Max Pro can program new flip keys for 2012 Nissan Qashqai by OBD. Including free password reading and key programming. Quite an easy and cheap tool.
Step1. Read Password

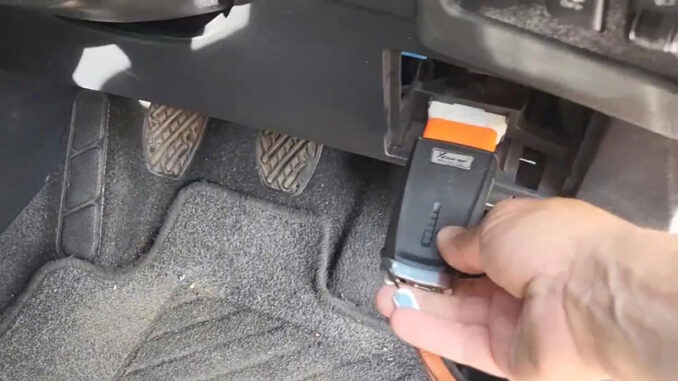

Plug Mini OBD Tool into car, then connect to Key Tool Max via Bluetooth.
Immo programming >> Nissan >> Read BCM code and release ELV(4 digits access code) >> Read BCM code and release ELV(4 digits access code) >> Start execution >> Read BCM code
Switch ignition on! Click “OK” to continue.
Note: if all keys are lost, please turn on double flash lamps first.
Body computer number(BCM number): AE57A
Use the “5-digit” BCM code calculation password” function to get password to match(This function requires online)!
Perform calculate of PIN codes by online?
Note:
- This function requires online network computing.
- Please keep the network unblocked.
BCM code: AE57A
Old password: 4558
New password: 3248
Fixed password 1: 5523
Fixed password 2: 9589
Step2. Program Keys
Nissan >> Select from model >> QASHQAI >> -2015 >> Immo system >> Start execution >> Program flip-keys
Input password: 3248
Please insert the key and switch ignition on!
Please switch ignition off!
Please switch the key to ON!
Whether the IMMO light is out a few seconds later? Yes
Programmed successfully.
Whether to program next one? Yes
Replace next key, then turn on ignition switch!
Whether the IMMO light is out a few seconds later? Yes
Programmed successfully.
Press “No” to complete.
Switch the ignition switch a few times until you hear the steering wheel!
Test 2 keys, both can work normally.
Done.
