Problem

The Xhorse VVDI Key Tool Plus Pad failed to read PCF7945 chip while VVDI MINI Key Tool & Key Tool Max can read. Only unworkable for PCF7945 chip. When using Key Tool Plus to read PCF7936, ID48 or 4D, all were OK.



Any ideas?



Solution

Disassemble VVDI Key Tool Plus to glue, the problem will be solved. (The use of potting glue in this way requires relevant knowledge. Generally speaking, it is a better choice to send the equipment back to the dealer for repair)

(It is not recommended for novices to use this method to repair.And VVDI Key Tool Plus is not all PCF7945 chips can be read, only some compatible ID46 can be read. If there is any problem, it is recommended to contact the dealer directly.)

How to disassemble VVDI Key Tool Plus?

Tools preparation: a T10 screwdriver, a tweezer.

Xhorse VVDI Key Tool Plus Failed to Read Chip Solution



  1. Remove 8 dust plugs with the tweezer.

Xhorse VVDI Key Tool Plus Failed to Read Chip Solution



  1. Remove 8 screws on Key Tool Plus outer shell.

Xhorse VVDI Key Tool Plus Failed to Read Chip Solution



  1. Remove battery with tweezer.

Xhorse VVDI Key Tool Plus Failed to Read Chip Solution



  1. Remove camera & screen with screwdriver.

Xhorse VVDI Key Tool Plus Failed to Read Chip Solution

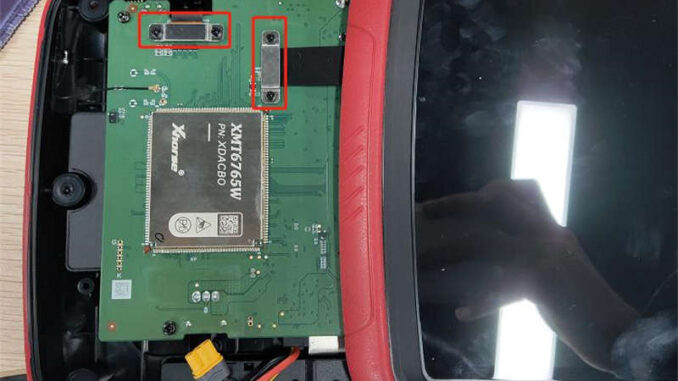

  1. Remove M3 screws and adapters on circuit board.

Xhorse VVDI Key Tool Plus Failed to Read Chip Solution



  1. Separate circuit board from outer shell.

Xhorse VVDI Key Tool Plus Failed to Read Chip Solution



Now you can locate the position marked in red.

PS: Not every machine will have this kind of problem. The machine with this kind of failure is usually because the container in the red box position in the figure falls off. At this time, plastic sealant needs to be used for plastic sealing at the red box position.
The glue used for plastic encapsulation is electronic silicone (such as epoxy resin, etc.). You can choose by yourself.
