VVDI PROG + MC9S12 Reflash Cable can repair BMW FRM E series XEQ384 by welding connection. Wiring diagram is easy to found in VVDI PROG software.

VVDI PROG + MC9S12 Reflash Cable Repair BMW FRM XEQ384



Repair BMW FRM XEQ384 Procedure

  1. Connection

– Disassembly FRM module from vehicle, open outer shell.

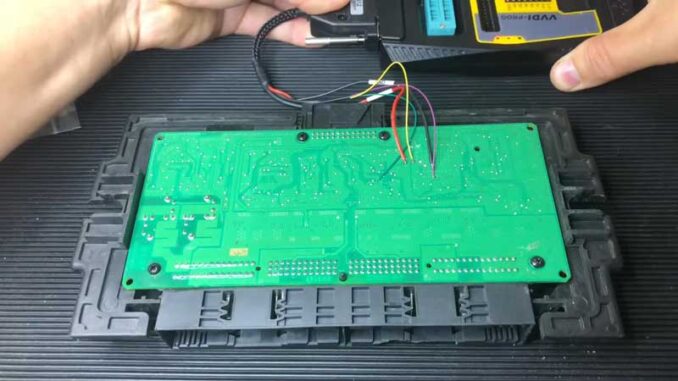

– Soldering FRM module 4 points(RESET, VCC, GND, BKGD) with MS9S12 wires according to connection diagram.

– Connect the other end of MC9S12 Cable to VVDI PROG.

VVDI PROG + MC9S12 Reflash Cable Repair BMW FRM XEQ384



  1. Read & Save D-FLASH

Open VVDI Prog Software to select relevant options:

8-OTHER type, BMW, FRM-E-SERIES-XEQ384-READ

Click “Read”.

Operation success.

Click “Save” to save dflash file.

VVDI PROG + MC9S12 Reflash Cable Repair BMW FRM XEQ384

VVDI PROG + MC9S12 Reflash Cable Repair BMW FRM XEQ384



  1. Write D-FLASH

Select chip option “FRM-E-SERIES-XEQ384-WRITE”.

Click “Erase+Unlock”.

Confirm erase all data and unlock the chip? Yes

Operation success.

VVDI PROG + MC9S12 Reflash Cable Repair BMW FRM XEQ384



Click “Open” to load the file to be written.

Click “Write”.

Continue to write? Yes

Just wait until processing 100%…

Operation success.

Done.

VVDI PROG + MC9S12 Reflash Cable Repair BMW FRM XEQ384

VVDI PROG + MC9S12 Reflash Cable Repair BMW FRM XEQ384



This is how to use MC9S12Cable working with VVDI PROG to repair FRM module.
