Xhorse VVDI PROG + EZS Adapter Read Mercedes W211 HC12

Xhorse VVDI PROG + EZS adapters can support to read Mercedes Benz EIS/EZS W164, W169, W203, W209, W211, W215, W639 and Sprinter. Solder-free, plug and play, designed for quick job.

Below is reading Mercedes W211 HC12 eeprom & flash as an example.

Tools:

Xhorse VVDI PROG

Benz W211 EZS Adapter(ST12)

Benz W211 EZS

Connection

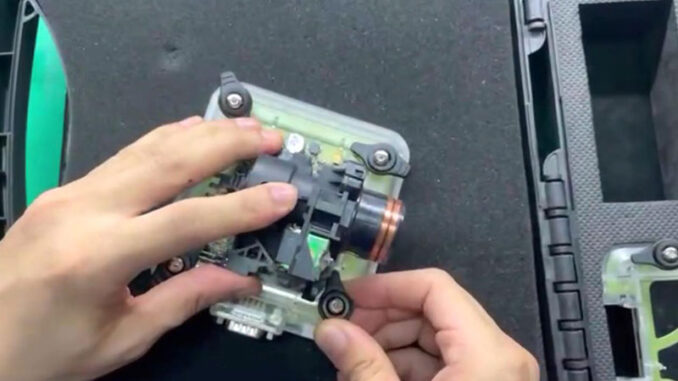

Install ST12 adapter onto W211 EZS, connect to VVDI Prog via EZS adapter cable. Connect device to computer via USB.

Procedure

Open VVDI Prog software to select options:

Type: 4-IMMOBILLIZER

Brand: BENZ

Chip: EIZ-W211-HC12(ADAPTER)

EEPROM >> Read

Read eeprom success.

Save eeprom data file.

FLASH >> Read

Read flash complete.

Save flash data file.

Done.

Very quick in 3 minutes. No soldering or welding.
