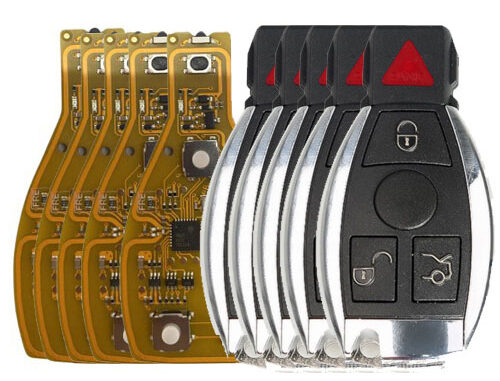

What’s Different in Xhorse VVDI MB BE Key Yellow Board?

New arrival! Xhorse VVDI MB BE Key Yellow Board is newly in stock. Working as a Mercedes Benz smart key, what’s different from the old green board? Let’s take a look.

Model	VVDI MB BE Key	VVDI BE Key Pro
Circuit Board Color	Yellow	Green
Price(5pcs)	£52	£65
Version	V3.2	V1.5
Points	No	200 bonus points
Reusable	Yes	Yes
Frequency	315Mhz, 433Mhz	315Mhz, 433Mhz
Compatible Tool	VVDI MB Tool, VVDI Key Tool Plus, Autel IM608, CGDI, etc.	VVDI MB Tool, VVDI Key Tool Plus, Autel IM608, CGDI, etc.
Chip Models Supported	705 Moto(1997-2000), NEC(2001-2005), NEC(2006-2010), BGA(2011-)	705 Moto(1997-2000), NEC(2001-2005), NEC(2006-2010), BGA(2011-)

Differences

1. Benz BE key yellow board is cheaper without 200 points.
2. VVDI MB key green board contains 200 points & higher price.

Beyond above, both work the same, support same model coverage, only different in colors.

VVDI BE Key Pro Improvements

1. Fix the bug that W164/W639 EIS data doesn’t synchronize the key.
   Fix the bug that the BE key fails to turn on the ignition after repeat try.
   3. Fix the bug of trunk remote open
   4. Fix the bug that the BE key only sent RF signal for one time, after update, the RF signal can be sent for two times when press and release the key.
   5. Modify the rolling algorithm, fix some errors of BE key.
   6. Add pre-roll algorithm: the HASH value can roll ahead.
   7. Adopt car-grade quartz crystal, improve infrared communication stability.
   8. Boost the infrared signal when you press the button.
   9. Support resetting the key frequency between 315MHZ and 433.92 in the way of VVDI MB tool or the PCB SMD resistor

Note: VVDI MB tool has priority over the SMD resistor, which means if you reset the key frequency with VVDI MB tool at first, the SMD resistor won’t work, and you need to use the VVDI MB tool to erase the frequency then use the SMD resistor.
