Xhorse VVDI Benz BE Key Assembly Instruction & FAQs

Xhorse VVDI Benz BE Key

Read this post to learn how to assemble Xhorse VVDI BE Key and what it can do. Here  collected the most frequently asked questions & answers from users for reference.

Xhorse VVDI Benz BE Key

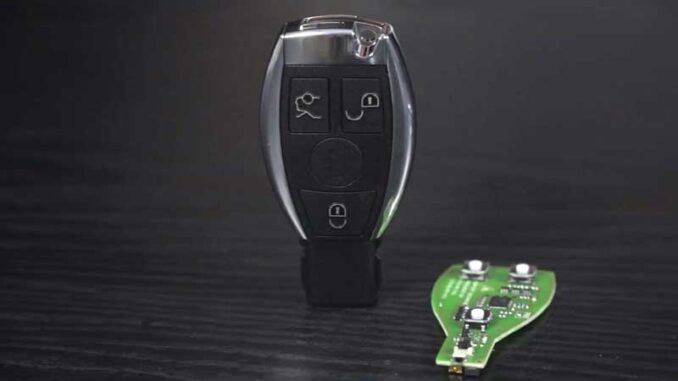

How to assemble Xhorse VVDI BE Key?

  1. Use a knife or screwdriver to pry up upper cover.

Xhorse VVDI Benz BE Key



  1. Remove covers on both sides to open key shell.

Xhorse VVDI Benz BE Key

Xhorse VVDI Benz BE Key



  1. Remove fixed clamp to install battery, put circuit board above the battery.

Xhorse VVDI Benz BE Key

Xhorse VVDI Benz BE Key



  1. Re-assemble all covers back together, insert Benz key blade.

Done.

Xhorse VVDI Benz BE Key

Xhorse VVDI Benz BE Key



Read also:

How to open Xhorse VVDI Remote Key to replace battery?

http://blog.xhorsestore.co.uk/xhorse-keys-chips/how-to-open-xhorse-vvdi-remote-key-to-replace-battery/



VVDI Benz BE Key FAQs

Q: What Mercedes models are applicable?

A: W216, W166/197/212/218/246, W639 2009-(CAN), W221, W169/209/211, W172/204/207/212(with ELV), W164/251(-2009), W164/251(2009-), W230(K), W203/463/639(K), W202/208/210(K), W215/220(K), W906



Q: Can Xhorse BE key work for 2004 Benz C240?

A: If original key is single battery, it works; If original key is double batteries, it cannot.

Xhorse VVDI Benz BE Key



Q: Why my BENZ BE Key cannot collect points and show “Attention: This BE key doesn’t have bonus points, its bonus points was already used!”?

A: Please follow the steps below:

  1. Upgrade VVDI MB/ VVDI Key Tool Plus Pad software & firmware to the latest version;
  2. One Benz BE key only supports to collect 200 points once. Make sure you haven’t collected points repeatedly;
  3. If step1-2 were all done, but problem remains. Perform collect points for each new BE key, then send logs to Xhorse service/dealer for help.

Xhorse VVDI Benz BE Key



Q: Why programmed BE key can start vehicle, but remote failed?

A: Please follow the steps below:

  1. Make sure if key frequency is correct as original one. Xhorse BE key supports to modify frequency.
  2. Try to re-generate the BE key with new key position.
  3. If step1-2 are failed, which means this key does not support. Try a new one.



Q: Can Xhorse BE key support to change frequency with CGDI MB?

A: No, it can’t.
